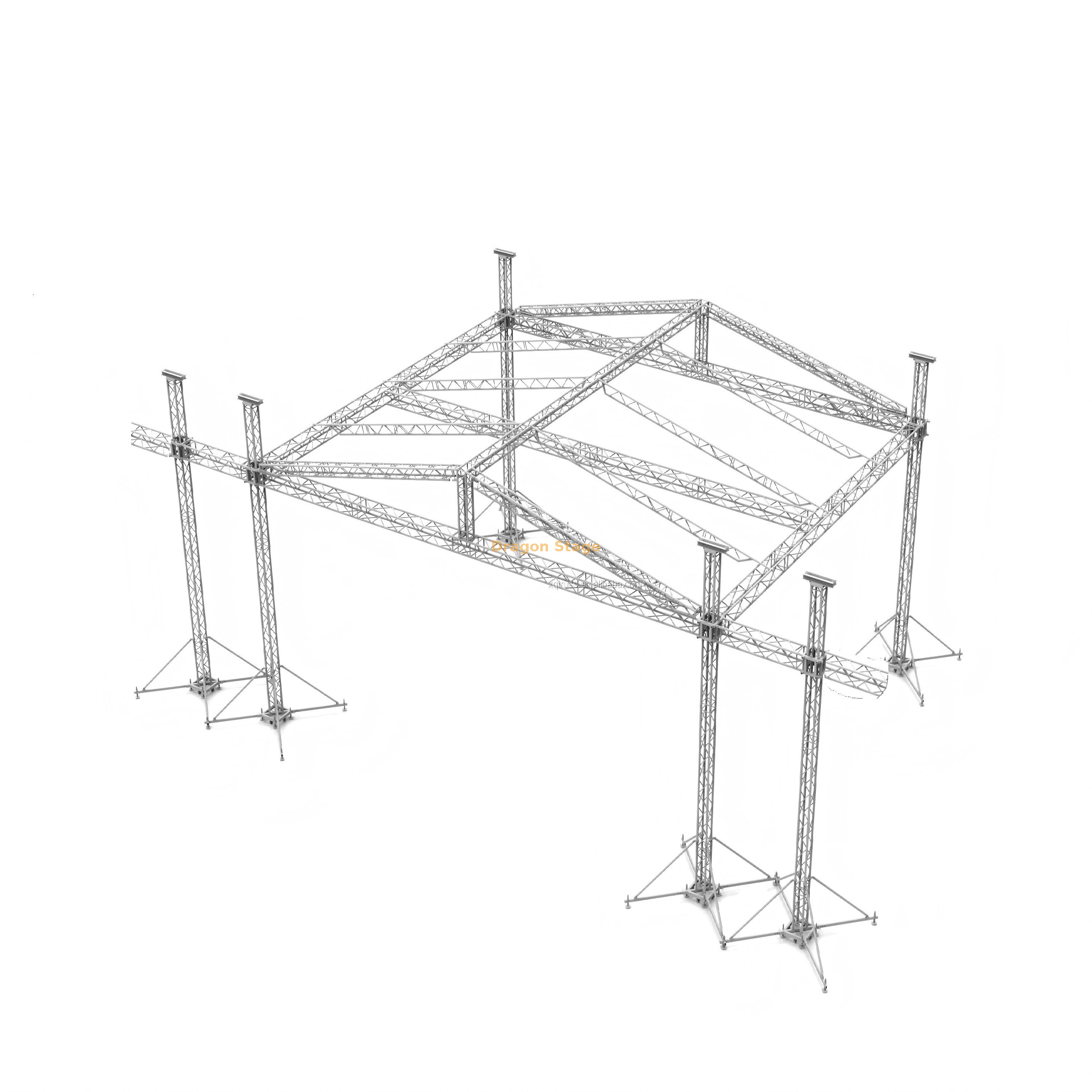

telhado exterior da fase do dossel da pirâmide de 14x12x12m

5 0 Rever

Elevate your festival production with this 14m x 12m outdoor pyramid canopy stage roofing. Standing 12m high, it features integrated 3m LED wings, 2m sound wings, and a reliable manual hoisting system for safe lifting. Engineered for major outdoor concerts and professional events requiring a massive 168sqm performance area and heavy-duty structural load capacity.

preço: ￥ 109798


Status de disponibilidade:



Inquérito

Marca do Produto:
Dragonstage

Descrição do produto

This Professional 14m x 12m Outdoor Pyramid Canopy Stage Roofing System is a premier structural solution designed for headline concert acts and large-scale festival environments. Reaching an impressive 12-meter vertical elevation, this system provides a comprehensive, high-capacity rigging environment for complex lighting, massive LED screens, and professional audio arrays.

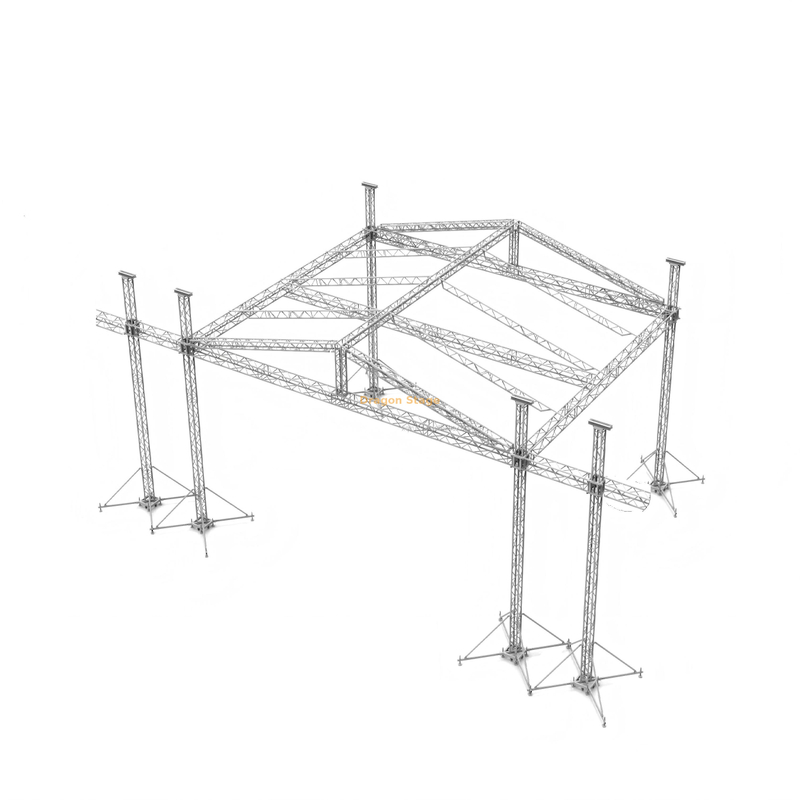

telhado exterior da fase do dossel da pirâmide de 14x12x12m

packing weight:2750kg

volume de embalagem: 27cbm

Item		Especificação (SQURE TRUSS)			Qty
		comprimento	tubo principal (mm)	tamanho (mm)
Feixe de 14,00 m (frente)	3 conjuntos	3,00 m	50 × 3,0	CS389 × 389	12pcs
		2,00 m	50 × 3,0	CS389 × 389	3pcs
		1,00 m	50 × 3,0	CS389 × 389	0pcs
Bave de 12,00 m (lateral)	2 conjuntos	3,00 m	50 × 3,0	CS389 × 389	8pcs
		2,00 m	50 × 3,0	CS389 × 389	0pcs
		1,00 m	50 × 3,0	CS389 × 389	0pcs
11,00 m Pilar	4 conjuntos	3,00 m	50 × 3,0	CS289 × 289	12pcs
		2,00 m	50 × 3,0	CS289 × 289	4pcs
		1,00 m	50 × 3,0	CS289 × 289	0pcs
Cubo de feixe	6 rostos	CS389 × 389			2pcs
Torre da estrutura	Bloco de manga Spigot S				4pcs
	Base de aço s				4pcs
	Seção superior s				4pcs
	Guincho manual, ba05 2tons				4pcs
	Seção da dobradiça da torneira, altura 1m				4pcs
	Fling de fibra, Ba04,2 toneladas 3M				4pcs
	Longo Outrigger				16pcs
Item		Especificação (SQURE TRUSS)			Qty
		comprimento	tubo principal (mm)	tamanho (mm)
Pilar do telhado	3 conjuntos	1,40 m	50 × 3,0	CS289 × 289	3pcs
12,00 m de viga superior	1 conjuntos	3,00 m	50 × 3,0	CS289 × 289	4pcs
		2,00 m	50 × 3,0	CS289 × 289	0pcs
		1,00 m	50 × 3,0	CS289 × 289	0pcs
7,20 m de feixe oblíquo	4 conjuntos	3,00 m	50 × 3,0	CS289 × 289	4pcs
		2,00 m	50 × 3,0	CS289 × 289	4pcs
		2,20 m	50 × 3,0	CS289 × 289	4pcs
7,20 m de escada treliça	10 conjuntos	3,00 m	50 × 3,0	CL30.289*50	10pcs
		2,00 m	50 × 3,0	CL30.289*50	10pcs
		2,20 m	50 × 3,0	CL30.289*50	10pcs
Componentes do telhado	4	telhado conner 4 maneiras, use para treliça de feixe de telhado		CS289 × 289	2pcs
	5	telhado conner 5 maneiras, use para treliça de feixe de telhado		CS289 × 289	1pcs
	1	Conecte a placa com o grampo		CS289 × 289	3pcs
		Grampo único			20pcs
		Grampo duplo			8pcs
		Material do dossel do telhado: PVC, cor azul ou personalizada.		274.96	1pcs
Item		Especificação (SQURE TRUSS)			Qty
		comprimento	tubo principal (mm)	tamanho (mm)
Viga de asas de 5,00 m	2 conjuntos	3,00 m	50 × 3,0	CS389 × 389	2pcs
		2,00 m	50 × 3,0	CS389 × 389	2pcs
		1,00 m	50 × 3,0	CS389 × 389	0pcs
11,00 m Pilar de asas	2 conjuntos	3,00 m	50 × 3,0	CS289 × 289	6pcs
		2,00 m	50 × 3,0	CS289 × 289	2pcs
		1,00 m	50 × 3,0	CS289 × 289	0pcs
Torre das asas	Bloco de manga Spigot S				2pcs
	Base de aço s				2pcs
	Seção superior s				2pcs
	Guincho manual, ba05 2tons				2pcs
	Seção da dobradiça da torneira, altura 1m				2pcs
	Fling de fibra, Ba04,2 toneladas 3M				2pcs
	Longo Outrigger				8pcs
Acessório de treliça		Acoplador cônico e clipe e pino safrty			conjunto inteiro
